Overview of the NEM ​

The National Electricity Market (NEM) operates on one of the world’s longest interconnected power systems. It covers around 40,000 km of transmission lines and cables, supplying a population exceeding 23 million.

The NEM is a wholesale market where electricity is traded across five interconnected regions: Queensland (QLD), New South Wales (NSW), Victoria (VIC), South Australia (SA), and Tasmania (TAS). Each region acts as a separate pricing zone, and prices can diverge when the transmission lines (interconnectors) between them become congested.

Simple usage ​

This package handles the download of data from the NEMWEB Archive and the parsing of the data into a System from PowerSystems.jl. At the moment only a simple zonal network model is available (a nodal model with physical lines is a work-in-progress), which allows to model a simple economic dispatch. By default, the package will create a hidden folder .aem_cache in the home directory, and save the data into parquet files.

julia
begin
    using AustralianElectricityMarkets
    using TidierDB
    using Dates
    using PowerSystems
    using DataFrames
    using Chain
    using CairoMakie, AlgebraOfGraphics
end


# Initialise a connection to manage the market data via duckdb
db = aem_connect(duckdb());

# Download data from AEMO's NEMWEB's Monthly archive
date_range = Date(2025, 1, 1):Date(2025, 1, 2)

# Download the data from the monthly archive, saving them locally
# in parquet files.
# Only the data requirements for a RegionalNetworkConfiguration are downloaded.
tables = table_requirements(RegionalNetworkConfiguration())
map(tables) do table
    fetch_table_data(table, date_range)
end;
2026-02-01 06:10:34 [info     ] Creating cache directory at /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Creating temp cache directory at /tmp/.nemweb_temp
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for INTERCONNECTOR 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for INTERCONNECTOR 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 76.81it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for INTERCONNECTORCONSTRAINT 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for INTERCONNECTORCONSTRAINT 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 454.47it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for DISPATCHREGIONSUM 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for DISPATCHREGIONSUM 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 257.67it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for DUDETAIL 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for DUDETAIL 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 363.58it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for DUDETAILSUMMARY 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for DUDETAILSUMMARY 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 205.28it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for STATION 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for STATION 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 859.31it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for STATIONOPERATINGSTATUS 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for STATIONOPERATINGSTATUS 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 885.25it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for GENUNITS 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for GENUNITS 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 767.63it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for DUALLOC 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for DUALLOC 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 686.24it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for BIDDAYOFFER_D 2025 / 1
2026-02-01 06:10:34 [info     ] Data already exists for BIDDAYOFFER_D 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00, 118.20it/s]
2026-02-01 06:10:34 [info     ] Set cache directory to /home/runner/.nemweb_cache
2026-02-01 06:10:34 [info     ] Set filesystem to local
2026-02-01 06:10:34 [info     ] Populating database with data from 2025-01-01 00:00:00 to 2025-01-01 00:00:00

  0%|          | 0/1 [00:00<?, ?it/s]2026-02-01 06:10:34 [info     ] Checking if data already exists for BIDPEROFFER_D 2025 / 1
2026-02-01 06:10:35 [info     ] Data already exists for BIDPEROFFER_D 2025 / 1, skipping download. Use force_new=True to overwrite.

100%|██████████| 1/1 [00:00<00:00,  1.30it/s]
100%|██████████| 1/1 [00:00<00:00,  1.30it/s]

Once the data is downloaded, a few utility functions allow direct parsing of key quantities, such as a table of all units registered in the NEM, or the region zonal operational demand

julia
# read all units
units = read_units(db)

capacity_by_fuel = @chain units begin
    select(:DUID, :REGISTEREDCAPACITY, :CO2E_ENERGY_SOURCE, :REGIONID)
    groupby([:CO2E_ENERGY_SOURCE, :REGIONID])
    combine(:REGISTEREDCAPACITY => (x -> sum(x) / 1000) => :installed_capacity_gw)
    dropmissing
    sort!(:installed_capacity_gw)
    # Ignore marginal sources
    subset!(:installed_capacity_gw => ByRow(>=(0.1)))
end

spec = mapping(
    :REGIONID,
    :installed_capacity_gw => "Installed capacity [GW]",
    stack = :CO2E_ENERGY_SOURCE,
    color = :CO2E_ENERGY_SOURCE => "Fuel source"
) * visual(
    BarPlot, alpha = 0.8,
)
fig = data(capacity_by_fuel) * spec
draw(
    fig,
    figure = (;

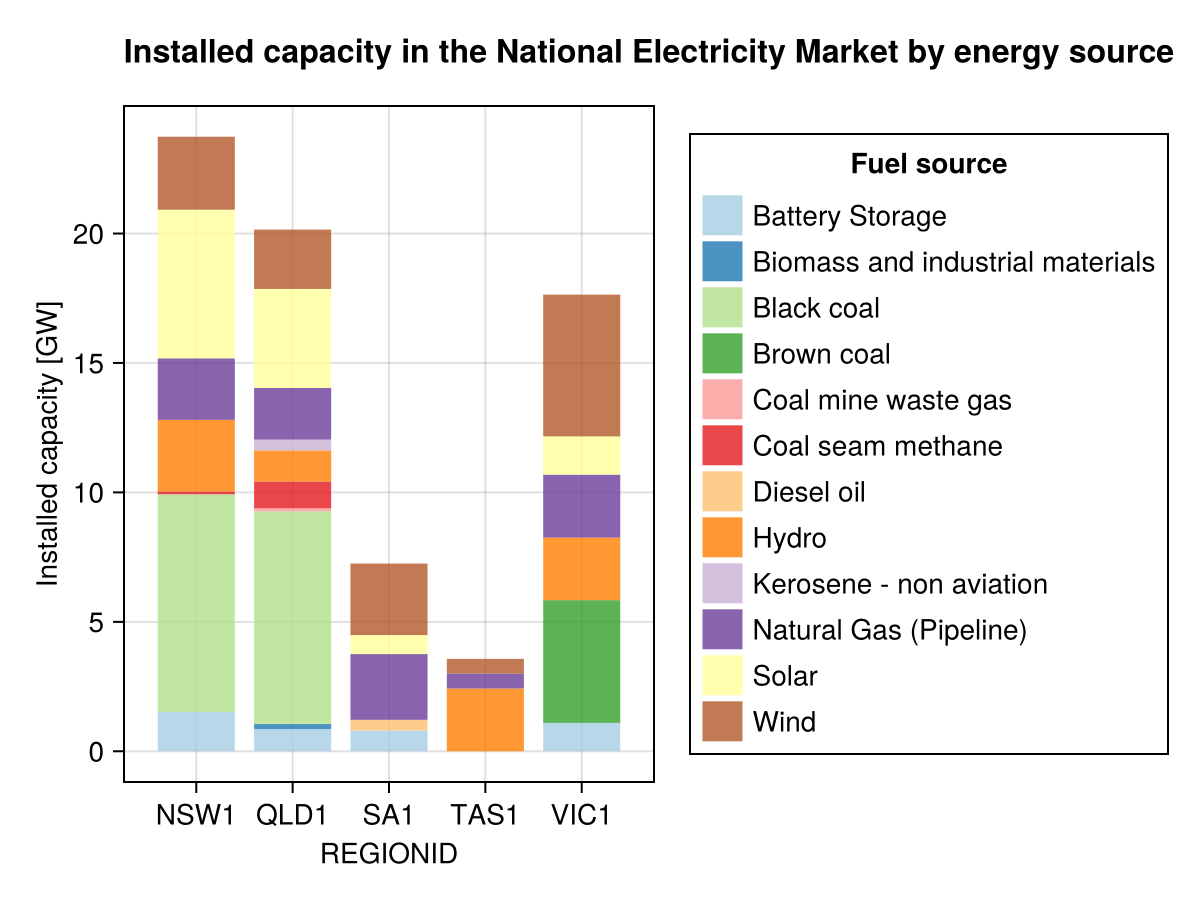

        title = "Installed capacity in the National Electricity Market by energy source",
    ),
    scales(Color = (; palette = from_continuous(:Paired_12)))
)

Read the demand for each state. In the NEM, this is referred to as Operational Demand, which is the demand met by local scheduled and semi-scheduled generation, plus net imports from other regions. It excludes "behind-the-meter" rooftop PV, which instead appears as a reduction in operational demand.

julia
demand = read_demand(db)

begin
    spec = data(
        subset(demand, :SETTLEMENTDATE => ByRow(x -> (Date(2025, 1, 20) <= x <= Date(2025, 1, 31))))
    )
    spec *= mapping(:SETTLEMENTDATE => "Date", :TOTALDEMAND => "Total Demand [MW]", color = :REGIONID => "State")
    spec *= visual(Lines)
    figure_options = (;
        title = "Regional demand in each Australian state",
        subtitle = "Period of January 20th 2025 to January 31st 2025",
    )
    draw(spec; figure = figure_options)
end

Australia has a fairly high penetration of PV, which at times exceed a state's total demand for electricity (in SA in particular).

julia
begin
    spec = data(
        subset(demand, :SETTLEMENTDATE => ByRow(x -> (Date(2025, 1, 20) <= x <= Date(2025, 1, 31))))
    )
    spec *= mapping(:SETTLEMENTDATE => "Date", :SS_SOLAR_AVAILABILITY => "Total Demand [MW]", color = :REGIONID => "State")
    spec *= visual(Lines)
    figure_options = (;

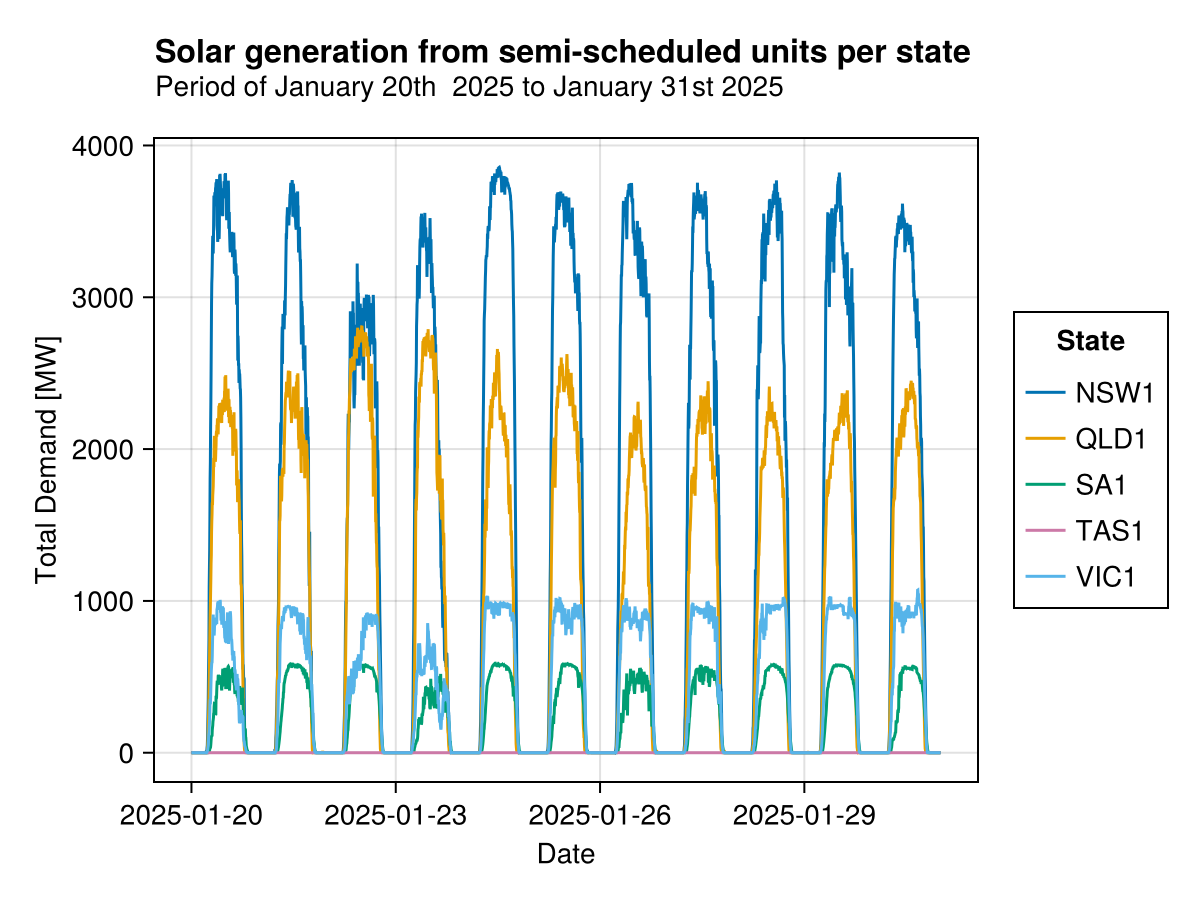

        title = "Solar generation from semi-scheduled units per state",
        subtitle = "Period of January 20th  2025 to January 31st 2025",
    )
    draw(spec; figure = figure_options)
end

Integration with PowerSystems.jl ​

The main purpose of this package is to provide the data required for instantiating systems with PowerSystems.jl and leverage the ecosystem of power systems modelling developed by NREL-Sienna.

julia
# Instantiate the system
sys = nem_system(db, RegionalNetworkConfiguration())
System
Property Value
Name
Description
System Units Base SYSTEM_BASE
Base Power 100.0
Base Frequency 60.0
Num Components 602
Static Components
Type Count
ACBus 12
Arc 12
Area 6
AreaInterchange 8
EnergyReservoirStorage 31
HydroDispatch 84
Line 14
PowerLoad 6
RenewableDispatch 222
ThermalStandard 199
TransmissionInterface 8

Users can then interact with the system with all PowerSystems utilities

julia
# Explore the thermal generators
thermal = @chain get_components(ThermalGen, sys) |> DataFrame begin
    select!([:name, :fuel, :prime_mover_type, :base_power])
    groupby(:fuel)
    combine(:base_power => sum => :installed_capacity_mw)
end
5×2 DataFrame
Rowfuelinstalled_capacity_mw
ThermalF…Float64
1PowerSystems.ThermalFuelsModule.ThermalFuels.NATURAL_GAS = 189710.0
2PowerSystems.ThermalFuelsModule.ThermalFuels.COAL = 121371.0
3PowerSystems.ThermalFuelsModule.ThermalFuels.OTHER_GAS = 191329.0
4PowerSystems.ThermalFuelsModule.ThermalFuels.AG_BYPRODUCT = 21480.0
5PowerSystems.ThermalFuelsModule.ThermalFuels.DISTILLATE_FUEL_OIL = 9841.0

Get information for a specific unit

julia
gen = get_component(ThermalGen, sys, "JLA02")
ThermalStandard: JLA02:
   name: JLA02
   available: true
   status: true
   bus: ACBus: VIC1_GEN_BUS
   active_power: 0.0
   reactive_power: 0.0
   rating: 0.51
   active_power_limits: (min = 0.0, max = 0.6499999916553497)
   reactive_power_limits: nothing
   ramp_limits: (up = 0.23000000149011612, down = 0.23000000149011612)
   operation_cost: PowerSystems.ThermalGenerationCost composed of variable: InfrastructureSystems.FuelCurve{InfrastructureSystems.LinearCurve}
   base_power: 51.0
   time_limits: (up = 8.0, down = 8.0)
   must_run: false
   prime_mover_type: PowerSystems.PrimeMoversModule.PrimeMovers.CC = 4
   fuel: PowerSystems.ThermalFuelsModule.ThermalFuels.NATURAL_GAS = 18
   services: 0-element Vector{PowerSystems.Service}
   time_at_status: 10000.0
   dynamic_injector: nothing
   ext: Dict{String, Any}("postcode" => "3000", "station_name" => "Jeeralang \"A\" Power Station", "station_id" => "JEERA")
   InfrastructureSystems.SystemUnitsSettings:
      base_value: 100.0
      unit_system: InfrastructureSystems.UnitSystemModule.UnitSystem.SYSTEM_BASE = 0
   has_supplemental_attributes: false
   has_time_series: false

Check the prime mover type

julia
get_prime_mover_type(gen)
PowerSystems.PrimeMoversModule.PrimeMovers.CC = 4

Check the rating in natural units

julia
with_units_base(sys, "NATURAL_UNITS") do
    get_rating(gen)
end
51.0
